Fischertechnik Txt Controller

Fischertechnik

Ask For Price

Includes any applicable VAT and customs duty.
Air shipping cost to be recalculated with delivery address at checkout.
To be delivered in 6 - 9 * working days.
100% genuine and new product.
Credit card / Cash on Delivery

Summary

/2 controller controls: with color touch display, dual processor 32Bit/500 MHz and 128 MB DDR3 RAM

Combined Bluetooth/WIFI Wireless Module, USB host, 4 motor ports, 8 Universal inputs (Digital/Analog),

Camera Connection Kit, built-in speaker, real time clock, Micro SD Card Slot

Connection to smartphone/tablet PC (Android) via Bluetooth or WLAN

For Robo TX Electropneumatic, Robo TX Explorer and Robo TX automation robots

Description

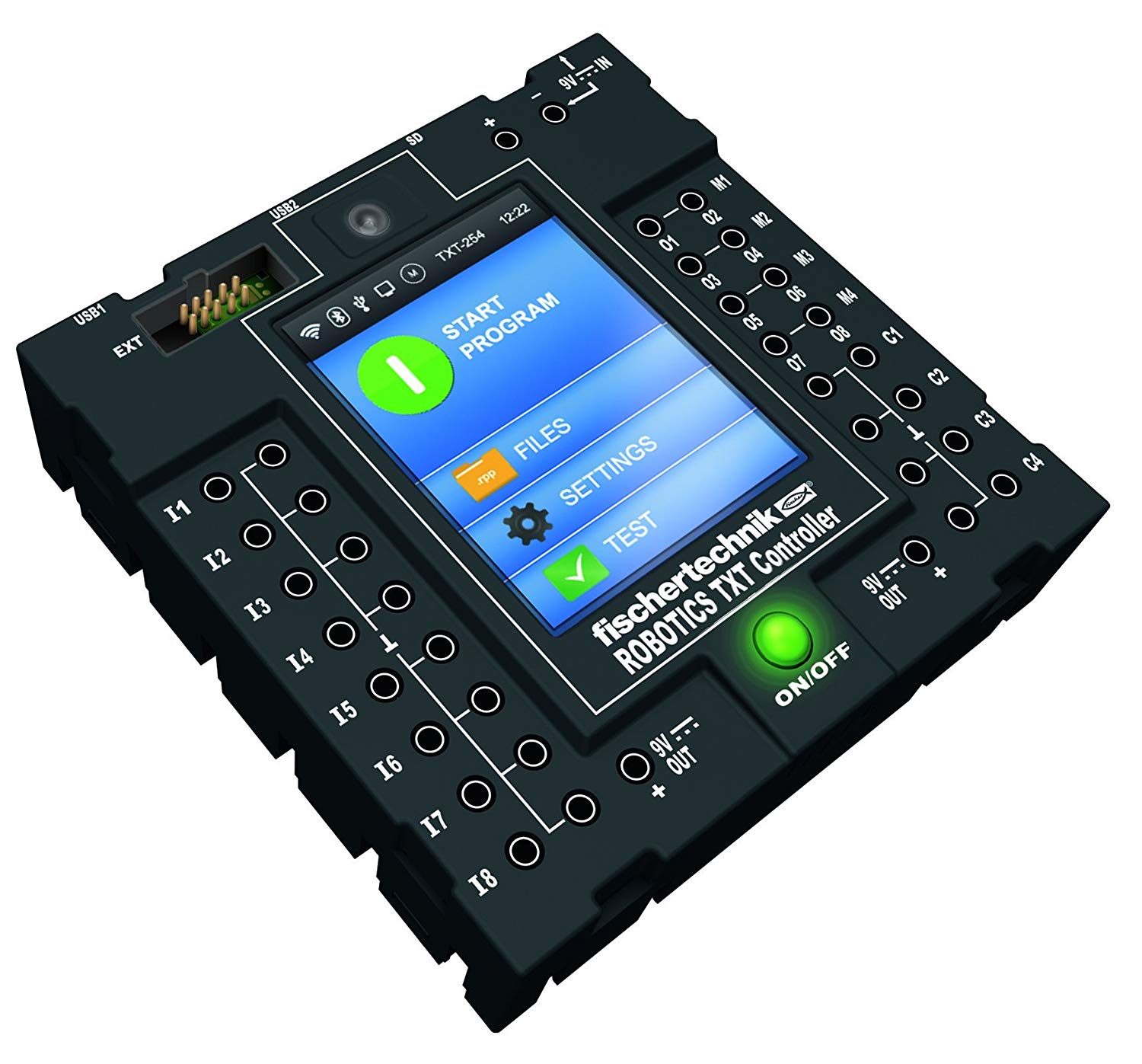

Fischer Technik GmbH fischertechnik robotics TXT controller Comfortable can the compact robotics TXT controller (90x90x25 mm) using the coloured 2.4 Touch Screen Operation.

The combined Bluetooth/WIFI Radio Module has the right solution for many applications, wireless interface.

Them to explore and numerous interfaces is also included USB Host port are on the as well as the fischertechnik USB Camera, USB drives, or can be connected.

The integrated micro SD card slot allows you to expand the memory capacity.

Multiple lights controller.

Required: Accu Set or power.> Dual Processor: ARM Cortex A8 (32bit/500)/Cortex M3 > Storage Capacity: 128 MB DDR3 RAM, 64 MB Flash Memory Expansion: Micro SD card slot > Display: Color 2.4 Touch Display (320 x 240 pixels) > 8 Universal inputs: Digital/Analog 0 – 9Vdc, Analog 0 to 5 Ko > 4 Fast Zähleingänge: Digital, Frequency up to 1 kHz > 4 Motor outputs 9 V/250mA (Max: 800 Ma): Speed can be adjusted, short-circuit-proof, alternative 8 single outputs may be used for lamps > combined Bluetooth/WIFI Wireless Module: BT 2.1 + EDR and + 4.0, WIFI 802.11 b/g/n > infa red remote receiver Diode: For transmitter of the fischertechnik control set > USB 2.0 Client: Mini USB Socket for connecting to the PC > USB Host Interface: USB A Female for fischertechnik USB Camera, USB drives, etc.> Camera Connection Kit: via USB Host, Linux Camera Driver built in to the operating system > Pin Header 10 Pin: For extension of the inputs and outputs as well as I2 °C interface; Built-in speaker; Built-in real time clock with removable buffer battery: For data recording in the definiertem period > Based Open Source Linux operating system > Can be programming with Robo Pro, compiler, PC LIBRARY AND MUCH MORE.> Connection to your Apple iPhone 4/4S/5/Tablet either via Bluetooth or Wi-Fi devices can be used as a control panel for the controller.

Programming via Robo Pro software.> Power supply: 9 V DC Female 3,45 mm; Komfortabel kann der kompakte ROBOTICS TXT Controller (90x90x25mm) über das farbige 2,4“ Touch-Display bedient werden.

Das kombinierte Bluetooth/WiFi-Funkmodul bietet für zahlreiche Anwendungen die passende, kabellose Schnittstelle.

Zu den zahlreichen Schnittstellen gehört auch der USB-Host-Anschluss an dem z.

B.

auch die fischertechnik USB-Kamera oder USB-Sticks angeschlossen werden können.

Der integrierte Micro SD-Karten-Slot ermöglicht die Erweiterung der Speicherkapazität.

Zwei Controller koppelbar.

Zusätzlich erforderlich: Accu Set oder Power Set.
› Dual Prozessor: ARM Cortex A8 (32bit/600MHz) + Cortex M3
› Speicherkapazität: 128 MB DDR3 RAM, 64 MB Flash
› Speichererweiterung: Micro SD-Karten-Slot
› Display: farbiges 2,4“ Touch-Display (320x240 Pixel)
› 8 Universaleingänge: Digital/Analog 0-9VDC, Analog 0-5 kΩ
› 4 schnelle Zähleingänge: Digital, Frequenz bis 1kHz
› 4 Motorausgänge 9V/250mA (max: 800 mA): Geschwindigkeit stufenlos regelbar, kurzschlussfest, alternativ 8 Einzelausgänge z.

B.

für Lampen
› Kombiniertes Bluetooth/WiFi-Funkmodul: BT 2.1 EDR+ 4.0, WLAN 802.11 b/g/n
› Infrarot Empfängerdiode: für Sender des fischertechnik Control Set
› USB 2.0 Client: Mini USB-Buchse zum Anschluss an den PC
› USB Host-Schnittstelle: USB-A Buchse für fischertechnik USB-Kamera, USB-Sticks uvm.
› Kamera-Schnittstelle: über USB-Host, Linux Kamera Treiber im Betriebssystem integriert
› Stiftleiste 10-polig: zur Erweiterung der Ein- und Ausgänge sowie I2C-Schnittstelle
› Integrierter Lautsprecher
› Integrierte Echtzeituhr mit austauschbarer Pufferbatterie: für Messwerterfassung in definiertem Zeitraum
› Linux basiertes Open-Source Betriebssystem
› Mögliche Programmierung mit ROBO Pro, C-Compiler, PC-Library uvm.
› Verbindung zu Smartphones/Tablet-PC über Bluetooth oder WLAN, Endgeräte können als Bedienfeld für den Controller verwendet werden.

› Stromversorgung: 9V DC-Buchse 3,45 mm, oder fischertechnik-Buchsen 2,5 mm (für Akku Pack) Bitte folgende Hinweise unbedingt beachten, wenn der TXT Controller im sogenannten WLAN Client Modus betrieben wird:
- Aktivieren Sie stets die WLAN Verschlüsselung WPA2 in den TXT WLAN Einstellungen, wenn Sie den TXT Controller im WLAN Client Modus mit einem WLAN-Netz verbinden
- Betreiben Sie keine unbekannten oder nicht vertrauenswürdigen Geräte im gleichen WLAN-Netz mit dem TXT Controller
- Wählen Sie WLAN Schlüssel entsprechend komplex, z.B.

die voreingestellten WLAN-Schlüssel der aktuellen Routern
- Geben Sie den WLAN Schlüssel nicht an Dritte weiter
Damit ist sichergestellt, dass Ihr TXT Controller auch in dieser Betriebsart vor unbefugten Zugriffen zuverlässig geschützt ist.

Product Safety

Warning: Not suitable for children under 36 months Warning: Toy inside. Adult supervision recommended

Product Information

Dimension : 2.5 x 2.5 x 2.5 cm
Item Weight : 358 g
Model Number : 522429
Shipping Weight : 381 g
Main Language(s) : Italienisch manual, Deutsch manual, Französisch manual, Englisch manual, Spanisch manual, Spanisch, Französisch, Deutsch, Englisch
Material Type(s) : Kunststoff
Assembly Required : No
Item model number : 522429
Product Dimensions : 2.5 x 2.5 x 2.5 cm
Batteries Included? : No
Batteries Required? : No
Number of Game Players : 1
Number of Puzzle Pieces : 1
Educational Objective(s) : Kreativität, Logisches Denken, Räumliches Denken
Remote Control Included? : No
Manufacturer recommended age: : 10 years and up
